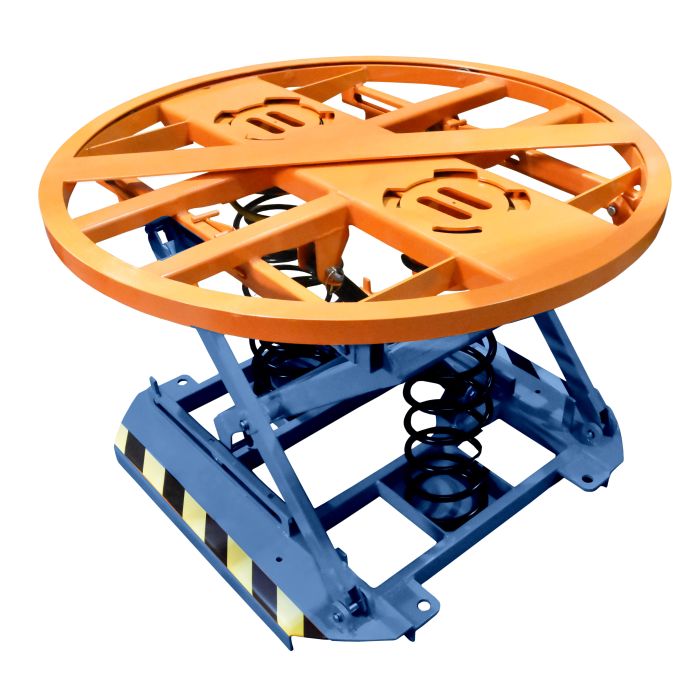

Pallet Turntable - Level Loader 185kg to 2000kg
Pallet Turntable Europe's Top Selling unit! Including a spring-actuated level loader, which makes loading and unloading pallets faster, safer and easier.
This simple, automatic load leveller uses a system of springs and shock absorbers to lower and raise loads as boxes are added or removed from pallets. A turntable allows nearside loading and unloading. No power or air supply is required. Pallet loads up to 2000 kg can be handled.
Features
- Rugged tubular steel frame for loads up to 2000 kg.
- Heavy-duty springs calibrated to bring the pallet to the most convenient height.
- Proven linkage design maintains level under uneven loading.
- Dampener provides smooth, gradual raising and lowering, without overshoot or bounce.
- Low-friction bearing supported turntable for near-side loading and unloading.
- Fork pockets for relocation by fork truck also extend base for free-standing stability.
- Free-standing, can be easily relocated by fork truck.
- CE-approved Turntable 360 spring palletiser offers workers complete 360° access to loads.
- All of its components are contained within the diameter of the turntable ring.
- There are no protrusions, projections or obstructions, so reach-over zones are eliminated.
- Pallet Turntable level loader can be set to use loads between 185kg - 2000kg
- Compressed height 270mm
- Extended height 710mm
- We also offer this model with fitted bellows please contact us for current pricing.
- Pallet turntable for level loading
- No need for electrics or hydraulics
- Handles loads of up to 2000kg
- CE-approved
Pallet Turntable Allows Level Loading
A pallet level loader allows operatives to work on pallet loads at the right height for them – every time.
On the one hand, the theory behind the pallet turntable is deceptively simple. It allows pallets to be situated on it before those pallets are adjusted to the right height for an operative to work from. On the other hand, the mechanisms and calibrated springs of the pallet carousel turntable rely on a sophisticated design, which ensures every load is levelled to the most convenient height.
With no power or air supply required to operate, the pallet carousel turntable is a crucial piece of equipment for businesses of many shapes and sizes.
How Does the Pallet Level Loader Work?
The pallet turntable works through a series of heavy-duty springs all calibrated to bring pallet loads to the right height for working. A forklift can be used to place the load on the pallet level loader, which then adjusts itself as the fork is removed to ensure the pallet and load is at the appropriate height.
The pallet carousel turntable itself can be moved by forklift, allowing for easy relocation from one part of the site to another. Thanks to the pallet turntable operating without power or hydraulics, it’s a flexible pallet levelling solution that nevertheless works brilliantly to protect operatives from poor posture and health issues while working.
Notable features of the Pallet Turntable
With a pallet load capacity of up to 2000kg, this pallet level loader is suitable for small warehouse operations all the way up to larger industrial and manufacturing sites.
It has a rugged steel frame for durability coupled with a dampener to provide a smooth and gradual raising and lowering experience, preventing loads overshooting or bouncing. One major design benefit of this pallet turntable is undoubtedly the fact everything is included within the diameter of the turntable ring.
With no components protruding or liable to cause obstruction when the pallet turntable is moved, the pallet level load is ideal for use in busy environments where operatives need to know all equipment is safe to work around. Similarly, with no wires to cause obstructions, the pallet turntable is a surprisingly compact solution for everyday loading problems.
